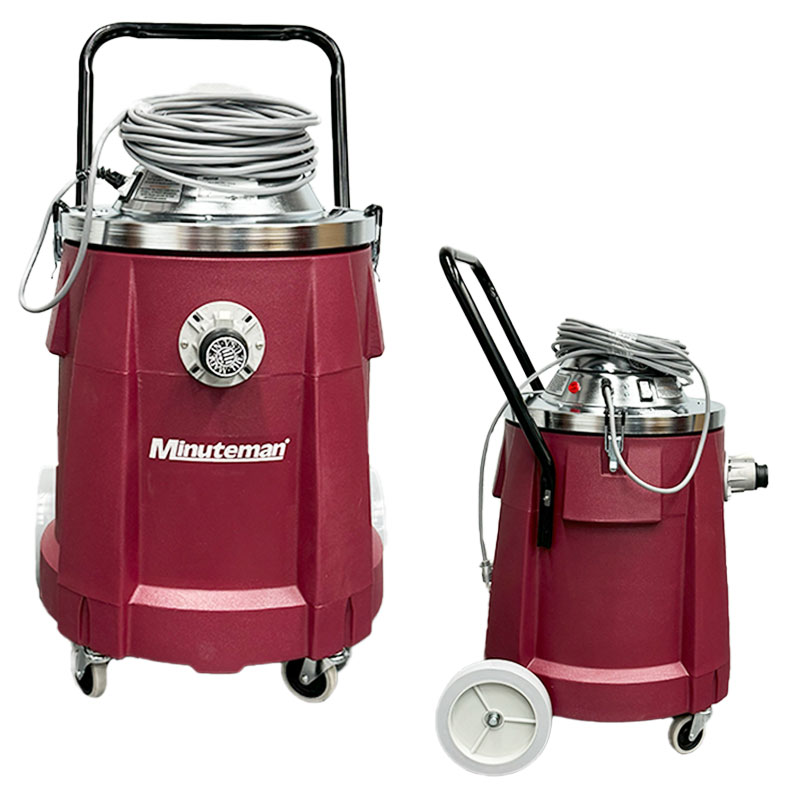

X-839 Series HEPA Critical Filter Dry Canister Vacuum - 15 Gallon

The X839 H.E.P.A. Vacuum Series is ideal for the safe and economical removal of hazardous and toxic materials, nuisance dust and fine powders.

The Minuteman x839 H.E.P.A. Vacuum Series is available with polyethylene, stainless steel or painted tanks to best suit your needs. This series is easy and economical to use.

The Tanks: Standard as dry only units, all 15 & 55 gallon vacuums have wet/dry recovery capabilities with an optional 1:1 adapter and water shut-off. The 55 gallon vacs are equipped with a painted tank, dolly and handle for easy maneuverability.

• Snap clamps hold lid securely to tank
• Automatic liquid or foam shut-off
• Seamless, molded linear polyethylene tank, noncorrosive
• 8" semi-pneumatic rear wheels and front swivel casters
• Optional wet conversion features perforated polyethylene screen to prevent debris from reaching filters (liquid shutoff assembly is optional with wet/dry filter)

H.E.P.A. Filter - Exclusive Feature

Minuteman COPOLM™ (copoly laminated media) H.E.P.A. (High Efficiency Particulate Air) filters feature an exclusive high tensile strength surface membrane copoly laminated media for increased durability. A seamless, lightweight aluminum filter housing eliminates potential problems.

C83905-05 - X839-15 INCLUDES:

• 801105 - Lid Assembly, 115V, 50/60 Hz (includes H.E.P.A. filter)
• 390023-01 - Tank Assembly, Polyethylene
• 805058 - Cloth Filter w/Bag Frame
• 110030PKG - Pre Filter Sleeve (6)
• 761177PKG - Paper Filter Protection Bags (10)
• 384003PKG - Paper Filter Collection Bags (10)

Options

• Manometer - This feature can be added to any Minuteman operated vacuum with 15 and 55 gallon drum capacities. The manometer measures the negative pressure within the vacuum tank unit and alerts the operator when the filters need servicing.
• 1:1 Adapter/Water Shut-off: - All 15 or 55 gallon dry recovery vacuums can be converted to wet recovery by adding a water shut-off and 1:1 adaptor.

Model

C83905-05

Motor

115V, 50/60 Hz

Power

2.3 HP

Tank Size

15 Gal. (57 liter)

Dry Capacity

.82 cu. ft (.02 m3)

Air Flow

115 CFM (3.2m3/min)

Static Lift

105" (2667 mm)

Filtration Area

2592in2 (16,724cm2)

Filter Efficiency

99.97% efficient at 0.3 microns

Rear Wheels

8" (20cm)

Front Wheels

3" (18cm) / Swivel Caster

Unit Weight

(70 lbs. / 32 kg)
