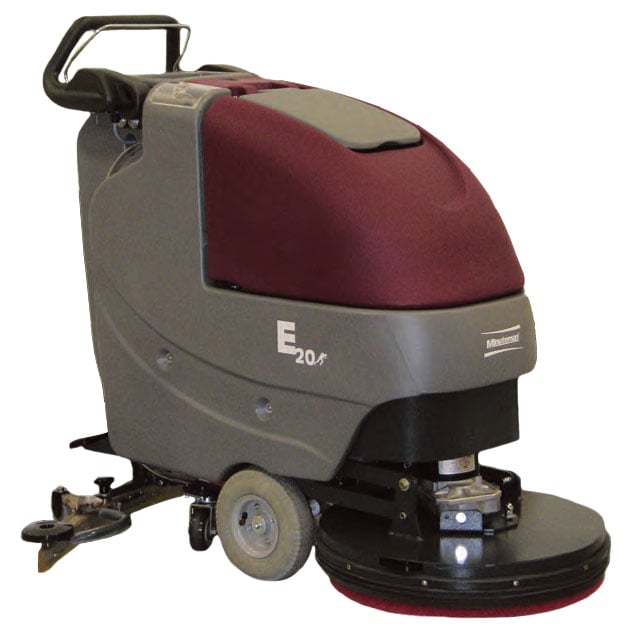

20" Disc Traction Driven Automatic Scrubber - Gel Cell Batteries

The E20 Model is a 20" machine, available with a disc brush deck and Cylindrical deck. The E 20 provides excellent cleaning performance on virtually any type of hard floor surface.

Includes: 20" Pad Driver, 100 AH, 12V, Gel Cell Battery (2 Required)

• Equipped with on-board charger 115V, 50/60Hz
• The E20 is a compact scrubber with a 20" cleaning path, available in disc and cylindrical
• Disc model offered in brush drive or traction drive, cylindrical model is traction drive
• Advanced technology makes the E20 a part of the innovative walk-behind scrubber line, the E Series
• The E20 covers 20,000 sq. ft. per hour (1,858sq. m) *Based on traction driven model
• Small, compact design allows for cleaning even in tight spaces
• Low brush deck is ideal for cleaning around and underneath obstacles

Green Features:

• Sound level is less that or equal to 70dBs
• Maintenance free gel batteries available
• Tool free brush removal
• Tool free squeegee removal
• One button operation
• Ergonomically designed for ease of use

Key Features

• On-board charger is convenient and allows the machine to be charged anywhere
• Brush loading/unloading is as easy as the turn of a switch, the operatore never has to manually remove the brushes
• 12 gallon solution tanks and 13 gallon recovery tanks
• Squeegees are designed so that no operator adjustment is necessary
• Parabolic squeegee standard on traction drive models and option on brush drive models
• Easy-to-clean, hygienic recovery tank
• When the on-board charger is plugged in, the machine is not operable
• Adjustable handle and ergonomic hand bails offer superior handling of the machine
• Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial

Key Features

• On-board charger is convenient and allows the machine to be charged anywhere
• Brush loading/unloading is as easy as the turn of a switch, the operatore never has to manually remove the brushes
• 12 gallon solution tanks and 13 gallon recovery tanks
• Squeegees are designed so that no operator adjustment is necessary
• Parabolic squeegee standard on traction drive models and option on brush drive models
• Easy-to-clean, hygienic recovery tank
• When the on-board charger is plugged in, the machine is not operable
• Adjustable handle and ergonomic hand bails offer superior handling of the machine
• Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial

Model

E20DTD

Cleaning Path Width

20in. (51cm)

Squeegee Width

33in. (84cm)

Theoretical Productivity

27,280 ft2/hr (2,534 m2)

Working Speed

3.1 mph (5 km per hr)

Rated Voltage

24 Volts

Vacuum Flow

65 cfm (110 m3/hr)

Vacuum Waterlift

45 inches (112mbar)

Vacuum Power

.60 HP (450 W)

Drive Motor Power

1/5 HP (150 W)

Brush Type

Disc

Brush Motor(s) Power

3/4 HP

Number of Brushes

1

Brush RPM

180 RPM

Solution Capacity

12 Gal (45 liters)

Recovery Capacity

13 Gal (49 liters)

Weight With Batteries

372 lbs (169 kg)

Weight Without Batteries

238 lbs (108 kg)

Would you like to have all the facts, lost your operator's manual, need to order the right parts or just want to make sure you are maintaining your machine properly? UnoClean is here to help:

• Data Sheet (PDF)
• Parts List (PDF)

Please Contact Us or call 1-888-226-2724 and a sales representative will happily assist you.
